Basic Gauge

Home  /  Coating Thickness Gauge

Basic Gauge
...

Basic Gauge

Product Description :

Purpose

Small-sized device for operative coating thickness measurements of paint, lacquer, galvanic, powder bitumen and other coatings on substrates from ferrous and non-ferrous materials with increased temperature range.

Features

colour OLED display with 1.7’’ diagonal, large digits on display;

device can be delivered with integrated combined small-sized probe for measuring coating thickness on substrates from ferrous and non-ferrous materials;

increased temperature range up to -30°C;

possibility of tolerance mode measurement, measuring with averaging;

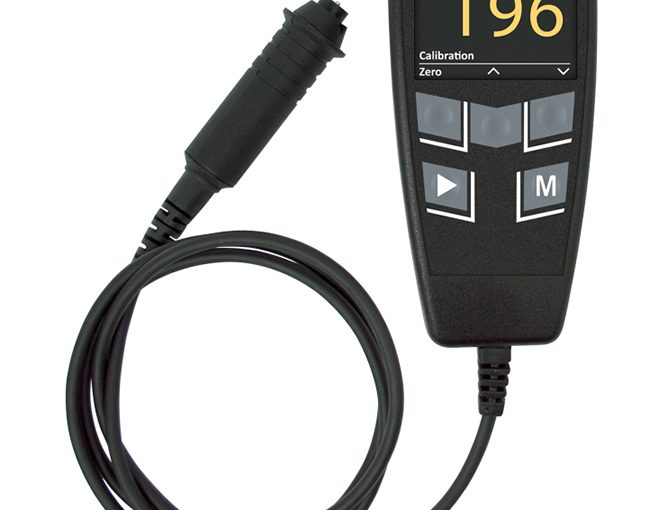

device can be delivered with integrated probe or with built-in probe on cable.

Basic technical characteristics

accuracy: in range T = 0…500 µm ±(0,02T+1) µm; in range T = 500…Tmax ±0,02T µm;

temperature range: for device: -30 °C…+40 °C; for probe: -40 °C…+ 50 °C;

power-supply: built-in Li-Ion rechargeable battery, 3,7 – 4,2 V, 700 mAh;

overall dimensions: 120 × 45 × 20 mm;

weight: 130 g;

operating time: min 8 h.
