Portable Metal Hardness Tester
...

Portable Metal Hardness Tester

Product Description

We introduce our business as a notable entity of qualitative array of Portable Metal Hardness Tester.

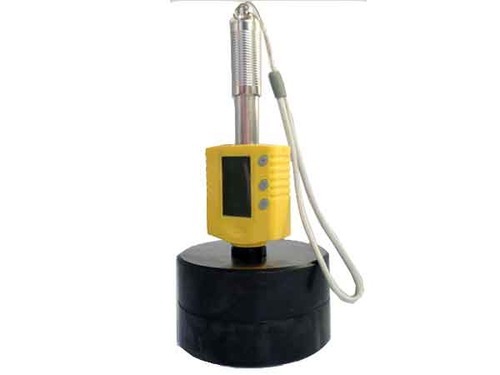

UHL1300D/DL Portable Hardness Tester

Using our patent “two coils” technology, URNDT UHL1300 gives out extraordinary high accuracy up to +/-2 HL and universal angle

It is no need to set up impact direction when taking measurements by any angle

UHL1300 will be used easily by menu operation even without operation manual

Its battery can be charged simply from USB port, also it has a customer re-calibration and statistics function

Advantages

Integrated design , easy operation

Digital with high contrast LCD display

High accuracy with patient technology +/-2 HL (or 0.3% @HL800)

Memories with 300 data, data can be recalled easily

USB inter face, it can connect to computer

Customer re- calibration allowed

3.7 V Li-ion rechargeable battery, it can be charged by USB or power source

Statistics value can be calculated automatically

With strength conversion value

Specifications

Model URNDT UHL1300

Principle Leeb hardness measurement

Accuracy / Repeatability +-0.3% @ HL=800 / +-2HL

Display LCD with back light

Hardness scale HL / HRC / HRB / HB / HV / HS / HRA /b

Measuring range HL170-960 / HRC17-70 / HRB13-109 / HB20-655 / HV80-940 / HS32-99.5 / HRA30-88 / b(rm)255-2639 N/mm2

Impact device D/DL

Materials 10 common metal materials Steel/Cast steel, Alloy tool steel, Stainless steel, Grey cast iron GG, Nodular cast iron, Cast aluminium, Copper-Zinc brass, Copper aluminium, Wrought copper, Forged steel

Memory 300 data can be saved and re-readable

Statistics function Average / Max. / Min.

Re-calibration Allowed by user

Indicator Low battery

Interface USB for charging or transferring data with PC

Power supply 3.7V Li-ion rechargeable battery

Working environment -10C~+45C

Dimension (mm) 148 x 44 x 22

Net weight (g) 110

Standards Conforming to ASTM A956, DIN 50156, GB/T 17394-1998

Standard package

Seq Part Name Qty

URNDT UHL1300 main unit 1

Internal impact device D/DL 1

Standard test block D with certificate 1

Cleaning brush (I) 1

3.7 V Li-ion rechargeable battery (internal) 1

USB Battery Charger 1

Communication cable 1

Data Pro software 1

Operation manual 1

Product Certificate 1

Carrying case 1

Additional Information :

Item Code PRO-UR-HT-UHL1300
