Coating Thickness Gauge PRO-CT110

Home  /  Coating Thickness Gauge

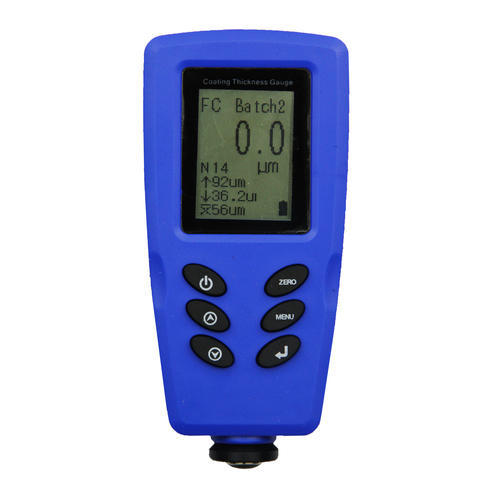

Coating Thickness Gauge PRO-CT110
...

Coating Thickness Gauge PRO-CT110

Product Specification:

Display Type Digital LCD display 1.9inch X1.46inch with backlight
Brand PRO ENGINEERS
Weight 200g
Minimum Order Quantity 1 Piece

Product Description

Model No. PRO-CT-110 Dimensions (mm) 52*25*110 Weight 200g Warranty

12/monthsStandard DeliveryMain Unit / Calibration Block / Manual / Packing list

Features

Integrated with magnetic-induction probe (F) and eddy current probe (N), switch to the suitable probe automatically according to the material to be measuredDigital LCD display(1.9inchx1.46inch) with backlight4 statistical data can be displayed Mean, Max, Min, ,Sdev.

High precision.

Anti slip & portable design, easy to carry Measure accurately on smooth, rough, thin and curved surfaces. Two measurement modes singel & Continuous Substrate iron, steel´╝îmagnetic stainless steel (does not include non-magnetic stainless steel), etc.

Coating zinc, copper, chrome-tin, plastic powder, paint (does not include nickel), etc. Substrate copper, aluminum, zinc, non-magnetic stainless steel, etc Coating plastic powder, paint, anodizing film, etc Power off automatically, time can be preset according to your requirements Zero calibration Automatic identification of metal substrates Error message by beeping.

Magnetic induction probe (F) is to measure the thickness of Non-magnetic coating on magnetic substrate.Eddy current probe (N) is to measure the thickness of non-conductive coating on non-magnetic metal substrate

Additional Information :

Item Code PRO-CT110
Delivery Time 4 DAYS
Port Of Dispatch MUMBAI
Production Capacity 1000
Packaging Details Main Unit / Calibration Block / Manual / Packing list
Payment Terms T/T (Bank Transfer)/CHEQUE
