Portable Ultrasonic Flaw Detector
...

Portable Ultrasonic Flaw Detector

Product Description

By leveraging upon our extensive market knowledge, we provide the best array of Portable Ultrasonic Flaw Detector.

Other Details:

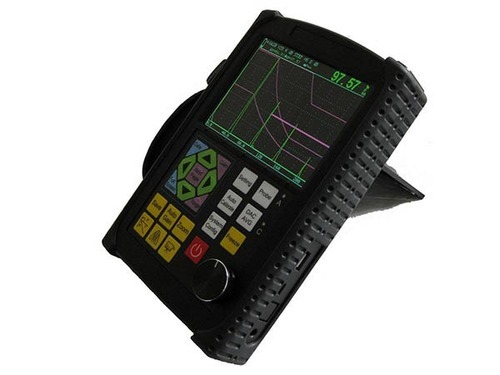

UTS-270 Digital Ultrasonic Flaw Detector Overview

UTS-270 is a portable industrial non-destructive flaw detector, which can rapidly, easily and accurately inspect, locate, evaluate and diagnose various defects (crack, inclusion and pinhole, etc.) in a work piece without destruction

It can be used both in a lab and field

The instrument can be widely used in any fields that need defect inspection and quality controlling e.g. manufacturing industry, iron & steel metallurgical industry, metalworking, chemical industry, etc., also be broadly used in the active safety inspection and service-life evaluation in such fields as aerospace, railway transportation and boiler pressure vessels, etc.

It is an essential instrument for non-destructive inspection industry

When the ultrasonic wave propagates in a job, one can detect the defect in it by the influence on the propagation of ultrasonic wave based on the acoustic characteristic demonstrated by the defect in the material

Based on this principle, by using ultrasonic wave one can measure such defects as crack, pinhole and inclusion in such media as metal, non metal and composite, etc.

Basic working principle for ultrasonic detection

Advantages:

Automated calibration (IIW), Automated gain

DAC, AVG, TCG, B scan, AWS, No Limited Video record,

High-speed capture and very low noise

high contrast viewing of the waveform from bright

Powerful pc software and reports can be export to excel

Performance Features:

Automated calibration of transducer Zero Offset and/or Velocity

Automated gain, Peak Hold and Peak Memory

Automated display precise flaw location(Depth d, level p, distance s, amplitude, sz dB)

Automated switch three staff gauge ((Depth d, level p, distance s)

300 independence setup, any criterion can be input freely, we can work in the scene without test block

Big memory of 800 A graph

Gate and DAC alarm, Acoustic-Optical alarm

USB port, communication with pc is easy

The embedded software can be online update

Li battery, continue working time up to 12 hours

Display freeze

Automated echo degree

Angles and K-value

Lock and unlock function of system parameters

AWS D1.1

Dormancy and screen savers

Electronic clock calendar

There are 14 standards of DAC in UTS-270.

Automated make video of test process and play Connect the USB Disk, the length of video is unlimited

Two gates setting and alarm indication

High-speed capture and very low noise

DAC, AVG, TCG, B Scan, Solid plastic housing (IP65)

Automated calculate the size of the flaw with w ide bottom type in AVG function

6dB DAC functions

Provides high contrast viewing of the waveform from bright, direct sunlight to complete darkness and easy to read from all angles

Powerful pc software and reports can be export to excel

2.6 Technical Parameters

Designation Technical Data: :

Range of scanning (mm) Range of scanning (mm):0-10000

Adjusting step:0.1 mm(2.5 mm-99.9 mm), 1 mm(100 mm-10000 mm)

D-delay(s) D-delay(s): -20-+3400

Adjusting steps:0.1(-20 s-999.9 s), 1(1000 s-3400 s)

P-delay(s) P-delay:0.0-99.99

Additional Information :

Item Code PRO-UR-UT-UTS-270
