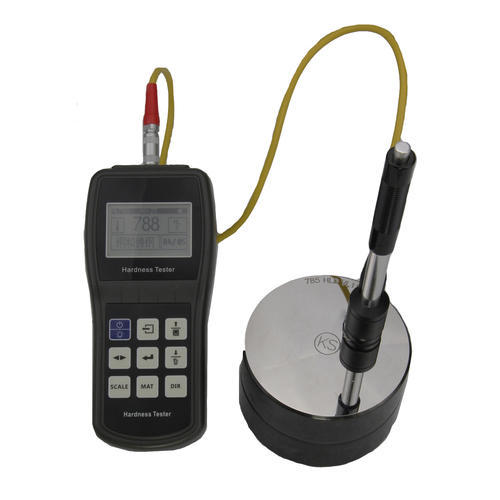

Portable Leeb Hardness Tester PROLH210

Home  /  Hardness Tester

Portable Leeb Hardness Tester PROLH210

Portable Leeb Hardness Tester PROLH210

Product Specification:

Display Type Digital LCD display 1.9inch X1.46inch with backlight
Model PROLH210
Display Type Digital
Supply DC
Brand DC
Battery Type 1.5V AAA
Portable Portable
Condition New
Minimum Order Quantity 1 Piece

Product Description

Portable Leeb Hardness Tester PROLH210

Model No. PRLH210Dimensions (mm) 155x77x35Weight 220g(Main Unit + Impact Device Type D)Warranty 12/months

Based on Leeb (HL), Converted to Vickers (HV), Brinell (HB), Rockwell (HRC and HRB), Shore (HS) and tensile strength (MPa).

6 hardness scales, each scale can be calibrated independently. Automatic identification of the impact device.

Compatible with multiple impact devices, 7 different Impact devices optional. 128×64 Dot Matrix LCD Display with backlights& contrast adjustable.

To derive the testing data easily by the special PC software.

Preset measurement times (1-32) to calculate the average value automatically.

Preset Lower and upper limit.

Automatic power off.

Testing Range 170-960HLD

Min. Reading 1HLD, 1HV, 1HB, 0.1HRC, 0.1HRB, 1HS, 1Mpa

Hardness Scales HL, HRC, HRB, HV, HB, HS

Testing Range +-6HLDwhen HLD=760+/-30;

Min.Reading Leeb, conversion hardness, material, impact direction, test times, average value, time

Hardness Direction 360 Degreedown, inclined down, level,inclined up and up

Memory 100 groups of testing results

Power Supply 3×1.5V AAA batteries

Weight 220g (Main Unit + Impact Device Type D)

Dimensions in mm 155x77x35

Standard Delivery

Main Unit 1 pc

Impact Device D 1 pc

Cleaning Brush 1 pc

Small Support Ring 1 pc

Battery 1.5V AAA 3 pcs

Hardness Test Block 1 pc

Manual 1 pc

Additional Information :

Delivery Time 4 DAYS
Port Of Dispatch MUMBAI
Production Capacity 1000
Payment Terms T/T (Bank Transfer)
Packaging Details Main Unit / Calibration Block / Manual / Packing list
Payment Terms T/T (Bank Transfer)/CHEQUE
